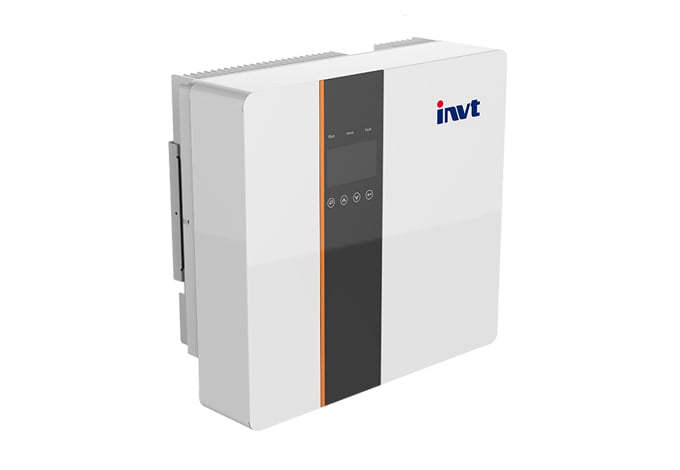

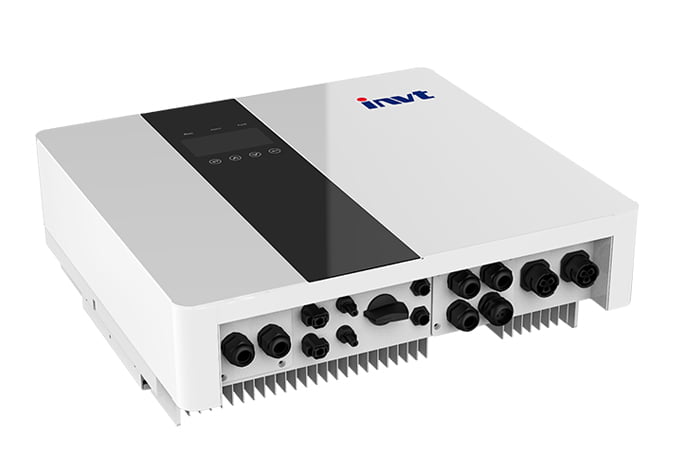

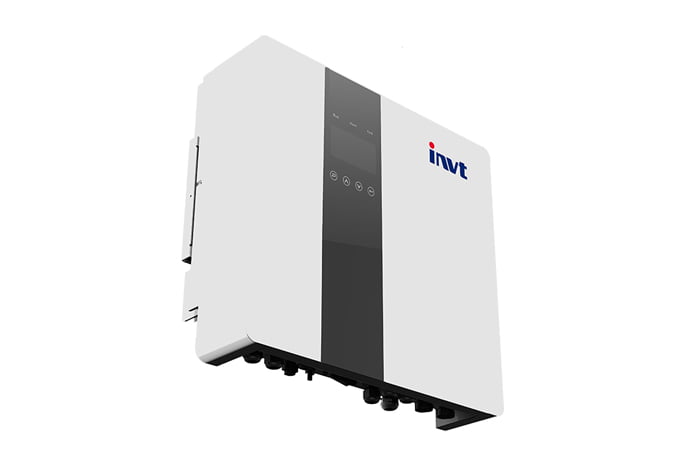

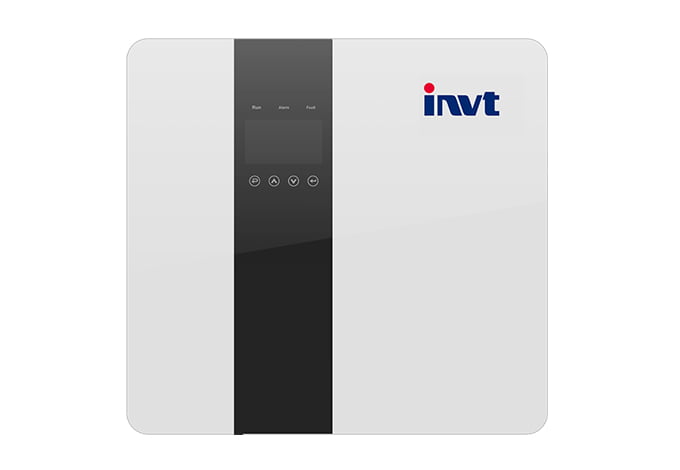

Invertor INVT Hibrid 6kW 48V 2 x MPPT 95A BD6KTL-RL1
Invertor INVT Hibrid 6kW 48V 2 x MPPT 95A BD6KTL-RL1
Preț obișnuit
7.700,00 lei RON
Preț obișnuit
Preț redus
7.700,00 lei RON
Preț unitar
/
pe
Taxe incluse.
Taxele de expediere sunt calculate la finalizarea comenzii.
Nu am putut încărca disponibilitatea pentru ridicare
| Input (PV) | |||
| Max. PV Input Power | 7kW | ||
| Max. PV Input Voltage | 550V | ||
| Start Voltage | 120V | ||
| MPP Voltage Range | 125V ~ 550V | ||
| Rated MPPT Voltage Range | 360V | ||
| Max. PV Input Current | 14A | ||
| Number of MPP Trackers / String per MPPT | 2 / 1 | ||
| Output (AC) | |||
| Max. Output Current | 26A | ||
| Rated Power | 6kVA | ||
| Rated Voltage | 230V, L + N + PE | ||
| Operating Voltage Range | 180V ~ 280V | ||
| Frequency | 50Hz / 60Hz | ||
| Power Factor | 1 (0.99 lagging~0.99 leading) | ||
| THDi | <3% | ||
| Output (EPS) | |||
| Rated Power | 6kVA | ||
| Rated Voltage | 230Vac | ||
| Rated Current | 26A | ||
| Rated Frequency | 50Hz / 60Hz | ||
| Automatic Switch Time | <20ms | ||
| Overload Capability | 110%, 60s / 120%, 30s / 150%, 10s | ||
| THDU | <2% | ||
| Battery | |||
| Battery Voltage Range | 40V ~ 58V | ||
| Max. Charging Voltage | 58V | ||
| Charge / Discharge Current | 95 A/ 110A | ||
| Battery Type | Lithium / Lead-acid | ||
| Communication | CAN / RS485 | ||
| Efficiency | |||
| Max. DC Efficiency | 97.60% | ||
| European Efficiency | 97% | ||
| MPPT Efficiency | 99.90% | ||
| Battery Charge / Discharge Efficiency | 95.5% / 95% | ||
| Communication | |||
| Display | LCD | ||
| Communication | standard: RS485 / CAN / DRM optional: WIFI / LAN |
||
| Standard Compliance | |||
| Certificates | CE, TÜV, SAA | ||
| General Data | |||
| Dimensions (W x H x D) | 550 x 515 x 200 mm | ||
| Weight | 26kg | ||
| Operation Temperature | -25℃ ~ +60℃ | ||
| Cooling Method | Natural Cooling | ||
| Protection Degree | IP65 | ||
| Noise Emission | <35dB | ||
| Max. Operating Altitude | 5000m (derating above 2000m) | ||
| Relative Humidity | 0 ~ 95% (non-condensing) | ||
| Topology | Transformerless | ||
| Standby Power Comsuption | ＜3W | ||
